Everything You Can See and Hear.

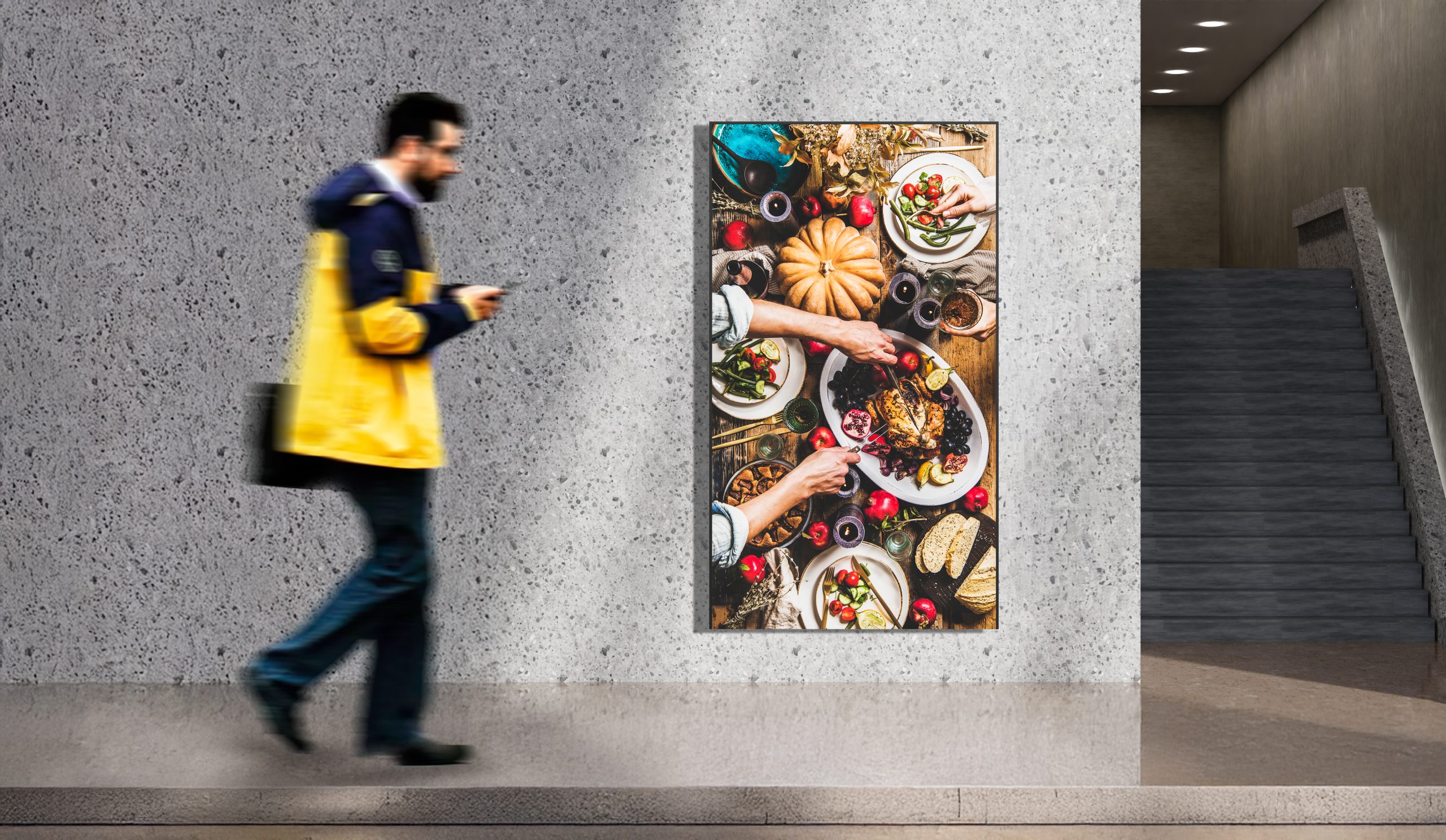

1,000 nits that cut through daylight.
1,000 nits of peak brightness keeps content vivid and legible in sun-filled lobbies, storefronts, and bright meeting rooms — paired with a 25% haze anti-glare surface that tames reflections.

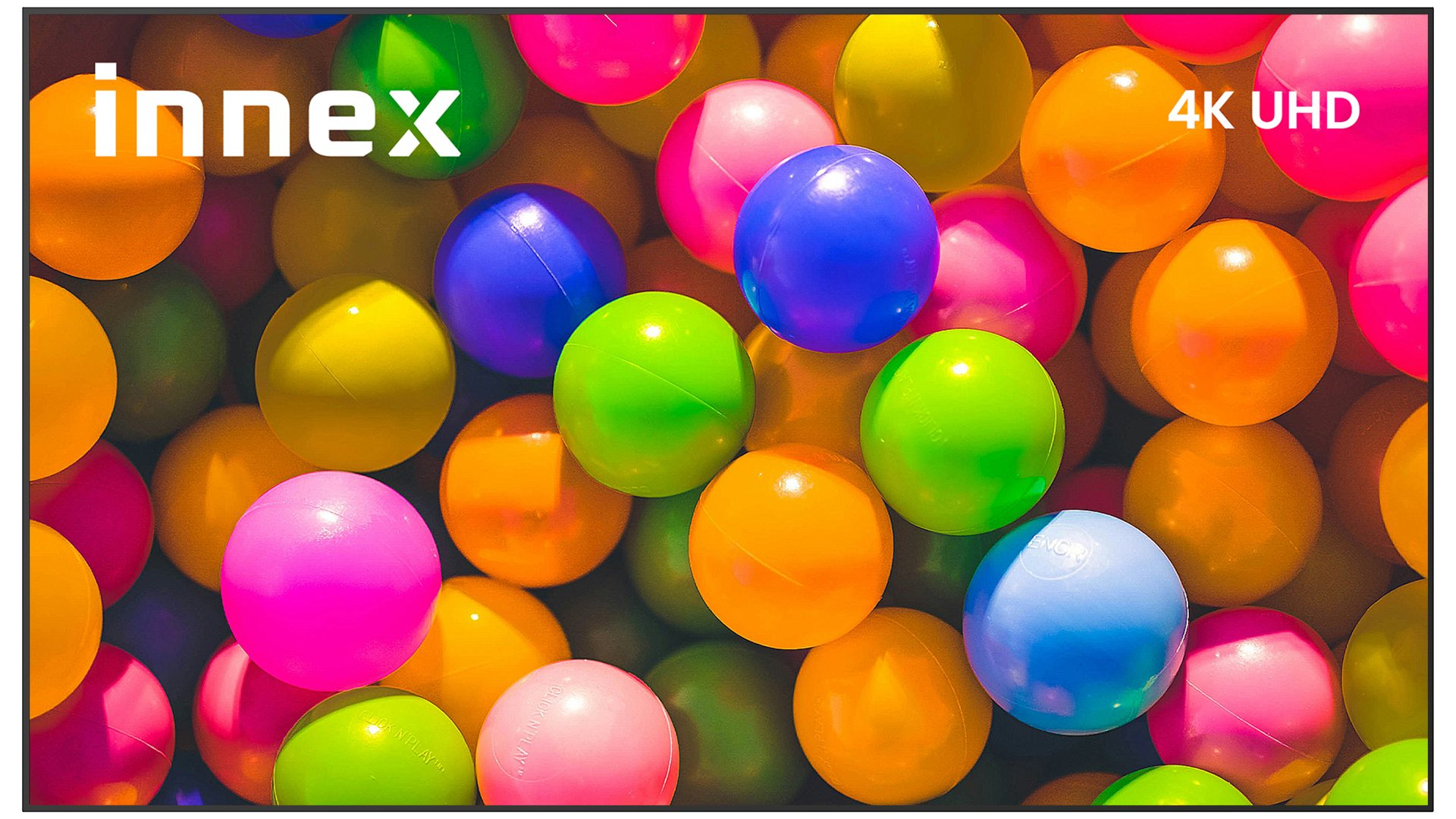

4K Quality
The CD Plus Series offers exceptional 4K quality, ensuring that every image is presented with stunning clarity and precision. With a 60Hz refresh rate and a 178° viewing angle, the display provides the best visual quality and readability for all types of content.
25% HAZE Anti‑Reflection
With 25% haze anti-reflection, glare is reduced, and clarity is preserved—even under bright lights or sunlight.
Non-stop Operation
Designed for 24/7 operation, the CD Plus Series is built to handle continuous, high-demand environments. Its durability ensures reliable performance around the clock, ideal for businesses needing dependable digital displays.
Portrait & Landscape Flexibility
The CD Plus Series offers versatile portrait and landscape flexibility, easily switching between orientations to fit any content or environment.
Ultra Narrow Bezel Video Walls
The Innex CD Plus Series features ultra-thin bezels for seamless multi-display tiling. This near-continuous video wall maximizes visual impact, keeping your content the absolute focus.
Wide Viewing Angle
The CD Plus Series features a wide 178° viewing angle, offering optimal usability, experience, and viewing comfort.

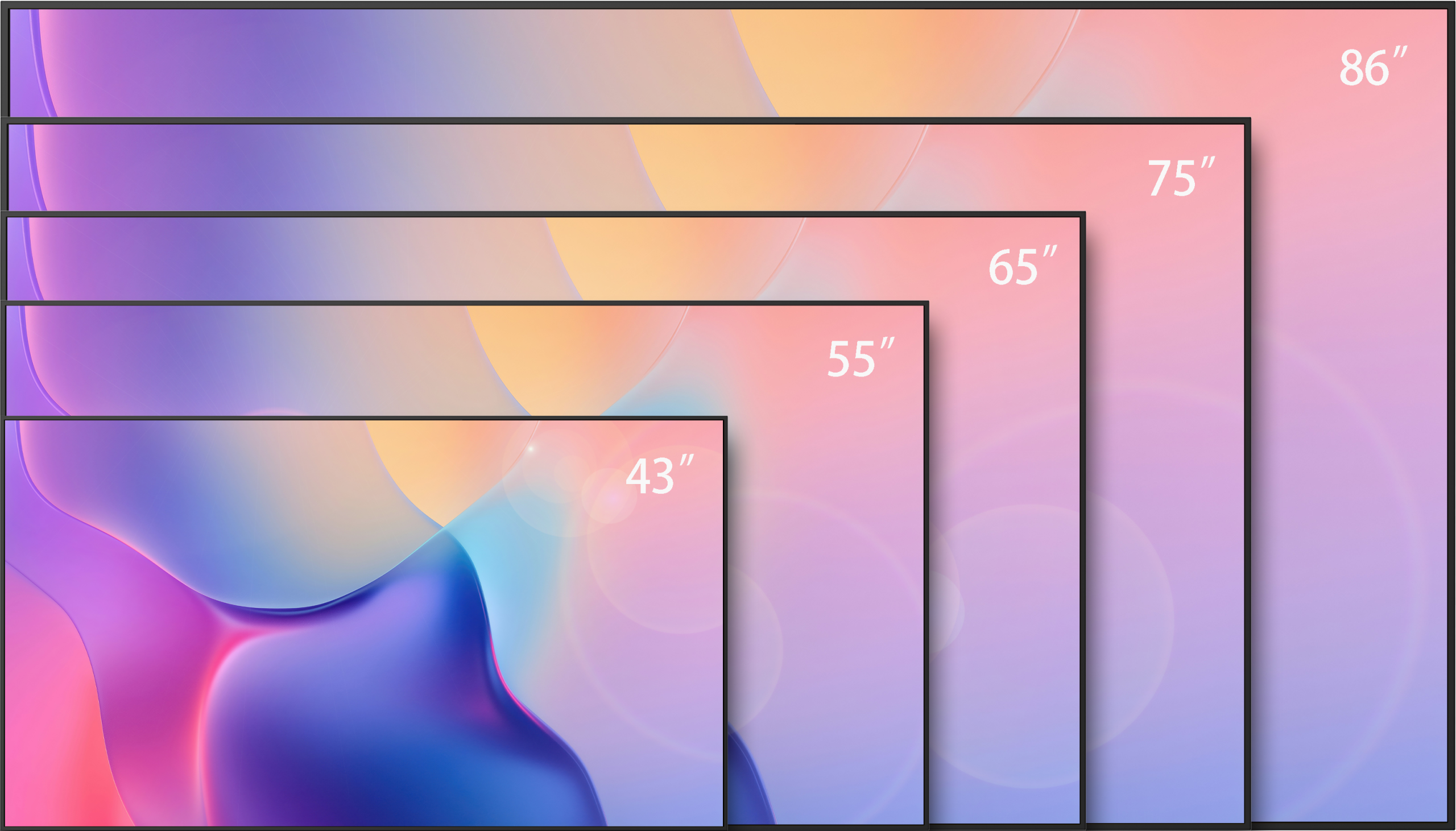

Available in Multiple Sizes
The ability to adapt and be effective in various environments.

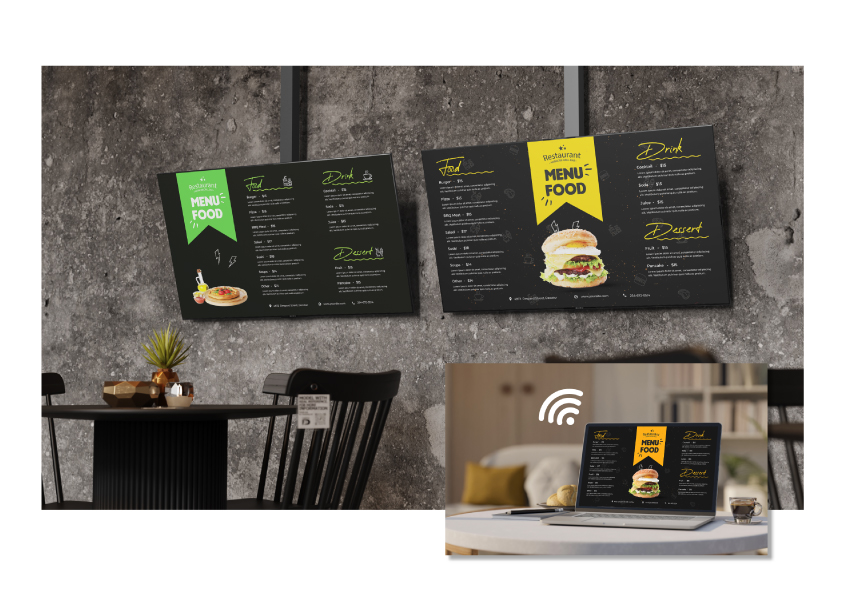

Easy & Secure Content Delivery
The Digital Signage Software makes content management easy and secure. With user-friendly configuration options, you can quickly set up a secure cloud server to share and control digital signage content. Authorized users can access displays remotely, ensuring that content updates are efficient and safe, no matter where you are.

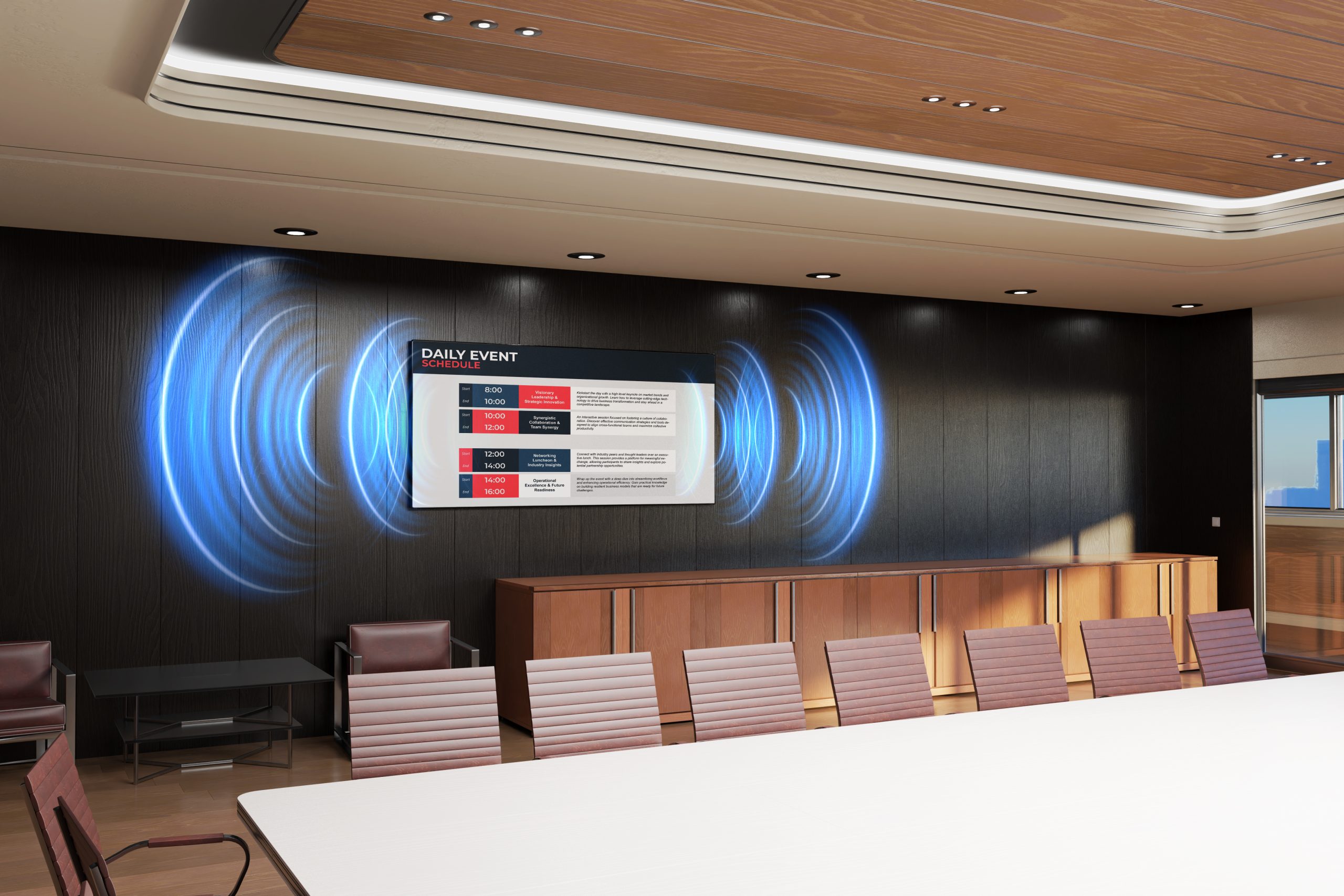

Built-in 20W Stereo Speakers
No soundbar, no extra wiring. Dual 10W speakers fill the room with clear audio for presentations, wayfinding, and video — so a single panel handles the whole experience.
One display, every environment.
Portrait or landscape, single panel or tiled video wall— managed remotely through secure cloud software.

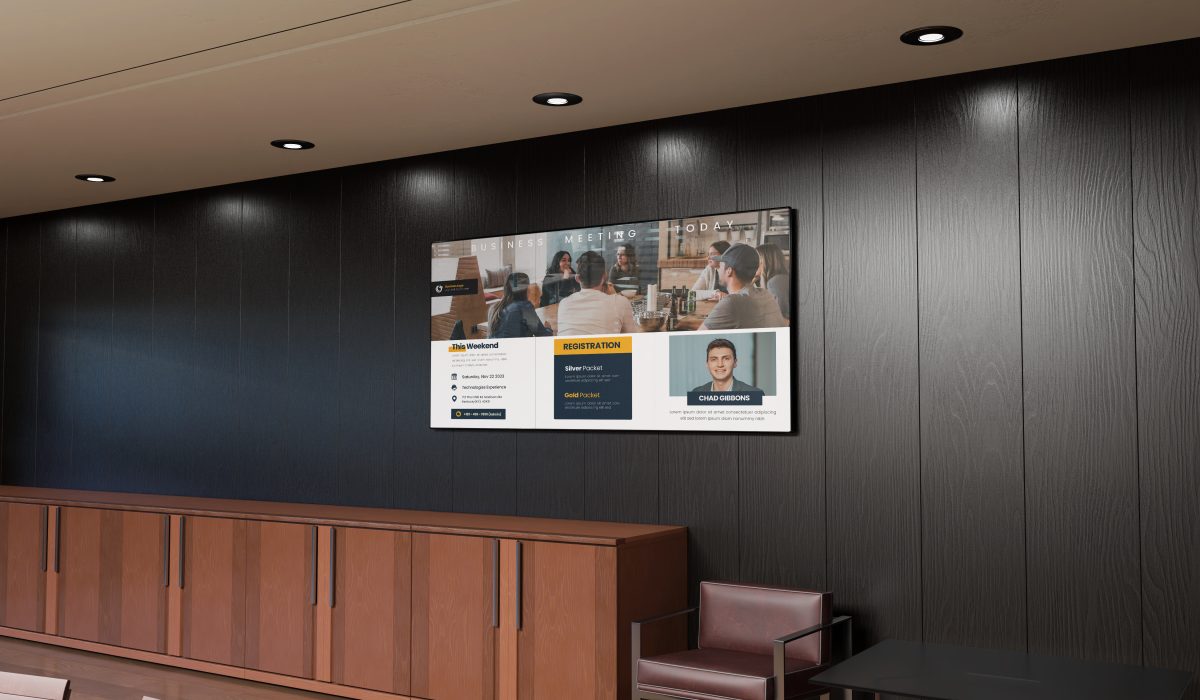

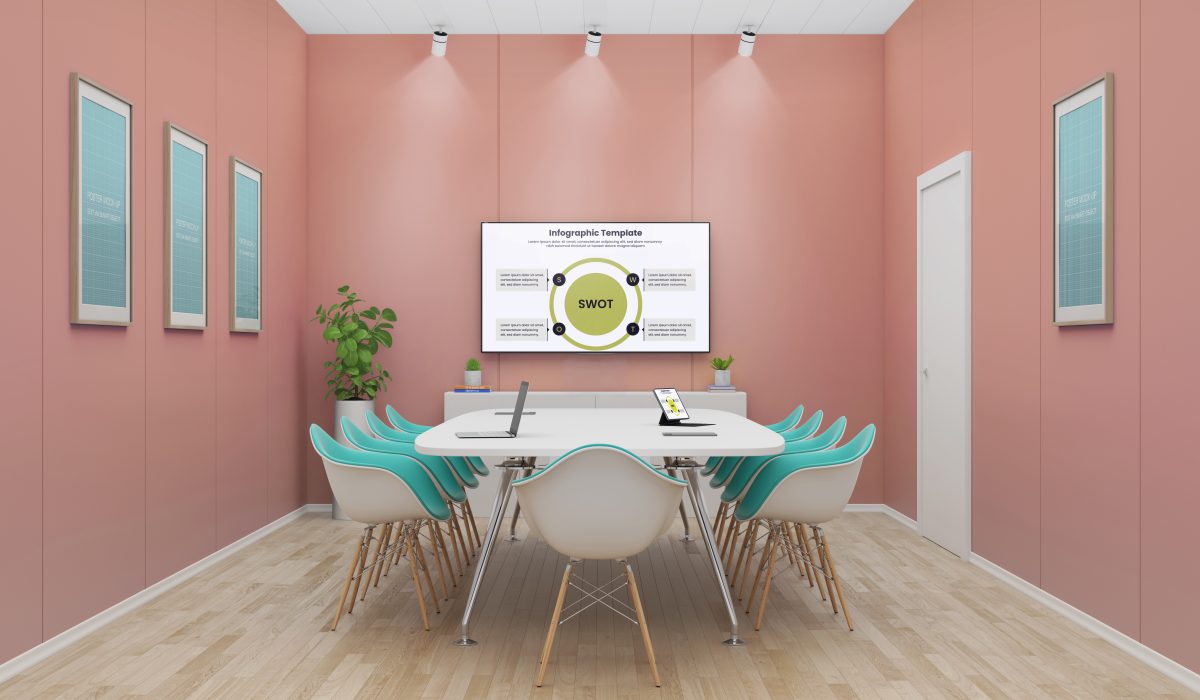

Offices & Meeting Rooms
Crisp 4K presentations with sound built in — then digital signage when the room’s empty.

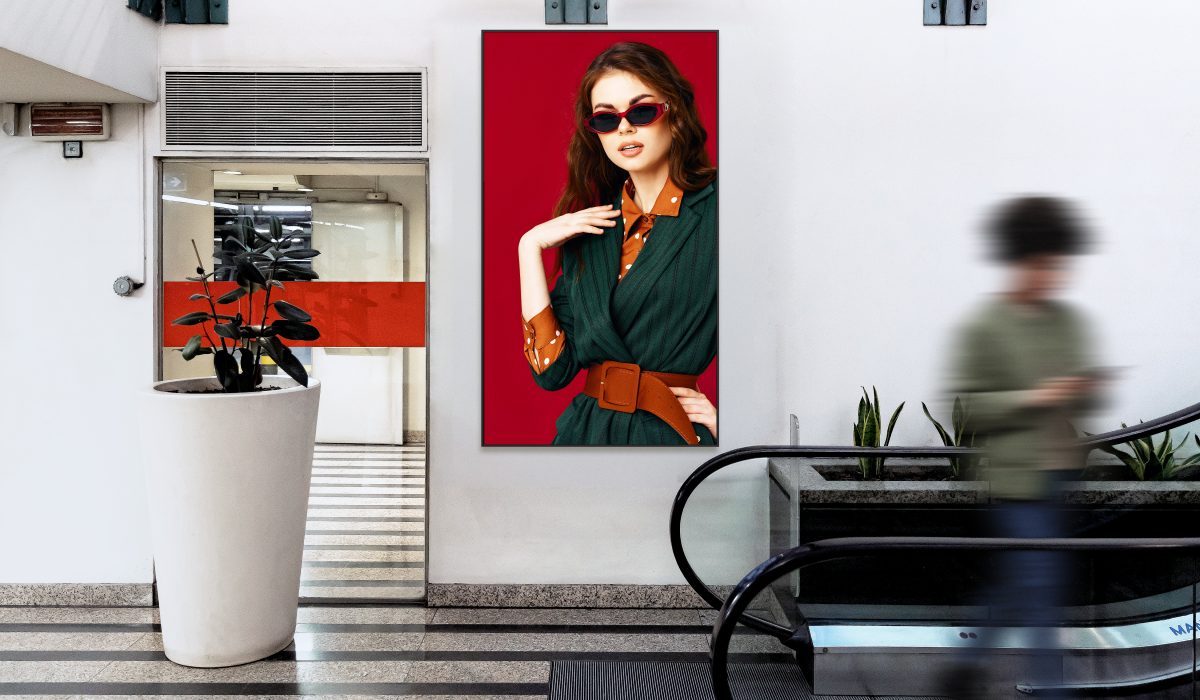

Retail & Public Spaces
1,000 nits keeps menus and promotions vivid under bright store lighting, 24/7.
Classrooms & Campuses
Wide 178° viewing and anti-glare clarity so every seat gets the full picture.

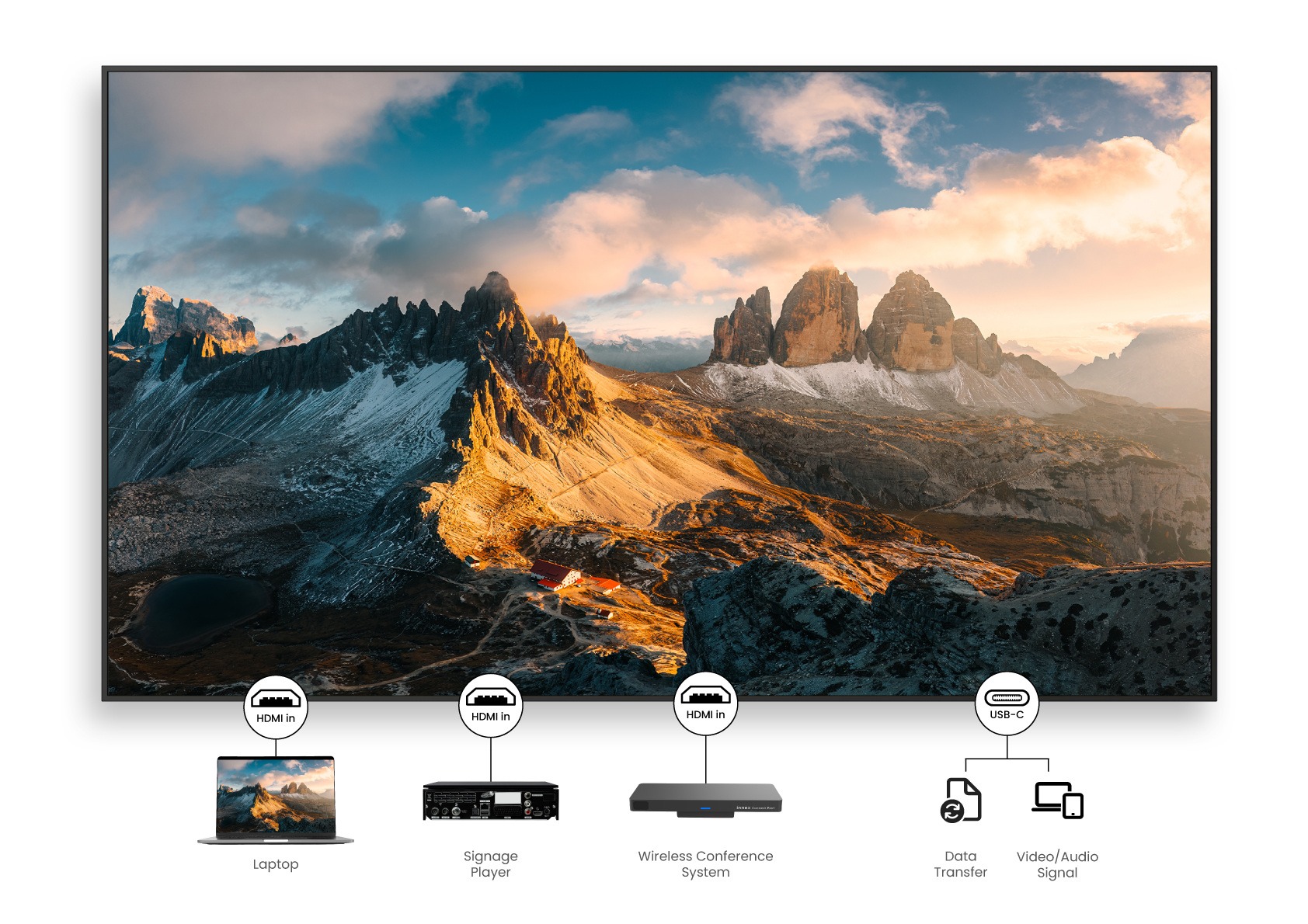

Effortless Deployment
Connect a media player over HDMI, or run video, audio, and power to a laptop through a single USB‑C cable. Flexible I/O makes the Plus Series effortless to deploy and switch between sources.
Build the whole room around it.
Pair the CD Plus with Innex wireless sharing and conference cameras for a complete, cable-free meeting space.
Innex Connect Pro+
Wireless BYOM sharing with AirPlay, Miracast & Chromecast support.
Innex conference cameras
From 120° to 360° AI tracking — a camera for rooms of every size.
SPECIFICATIONS
Display Dimension: 43”/55”/65″/75″/86″
Brightness: 1000 nits (Typ.)
Dynamic Contrast: 5000:1
Anti-Glare: 25% Haze
BackLight: DLED
Resolution: 3840×2160 (pixels, RGB)
Aspect Ratio: 16:9
Response Time:
- CD43 / 8ms
- CD 55 / 8ms
- CD 65 / 6.5ms
- CD 75 / 8.5ms
- CD 86 / 8ms
Display Color: 1.07B (10bit)
Viewing Angle: 178°
Panel Frequency: 60 Hz
Life Time: 50,000 Hrs (min.)
- DC In x1
- Audio out + Mic in x1
- USB-C x1 (Support DP Alt Mode)
- USB-A 3.0 x2
- HDMI in x3 (HDMI 2.1, 4K@60 Hz)
- RJ45 (10M / 100M / 1000M)
- USB-A 2.0 x1 (for Wi-Fi Dongle)
Power Input: 100V~240V AC
Rated Power Consumption:
- CD 43 / Maximum ≤ 150W
- CD 55 / Maximum ≤ 180W
- CD 65 / Maximum ≤ 220W
- CD 75 / Maximum ≤ 280W
- CD 86 / Maximum ≤ 380W
Standby Power Consumption: ≤ 0.5W
Speaker Output: 10W x2
Operating Temperature: 0 ℃ ~ 45 ℃/32°F ~ 113°F
Storage Temperature: -10 ℃ ~ 55 ℃/14°F ~ 131°F
Operation Humidity: 20% ~ 80%RH
Storage Humidity: 20% ~ 90%RH
Operating System: Android 14
RAM / ROM: 4 GB / 32 GB
CPU/ GPU : Cortex-A55*4 / Mali G52
UI Resolution: 4K
USB type Wi-Fi module: Wi-Fi 6E ; IEEE802.11 b / g / n, IEEE802.11 a / n / ax / ae
Panel Dimension:
- CD 43 / 960 x 550 x 65mm/37.8 x 21.7 x 2.6 in
- CD 55 / 1230 x 700 x 65mm/48.4 x 27.6 x 2.6 in
- CD 65 / 1450 x 825 x 65mm/57.1 x 32.5 x 2.6 in
- CD 75 / 1670 x 950 x 65mm/65.8 x 37.4 x 2.6 in
- CD 86 / 1920 x 1090 x 65mm/75.6 x 42.9 x 2.6 in
Package Dimension:
- CD 43 / 1020 x 630 x 140mm/40.2 x 24.8 x 5.5 in
- CD 55 / 1290 x 780 x 150mm/50.8 x 30.7 x 5.9 in
- CD 65 / 1545 x 930 x 165mm/60.8 x 36.6 x 6.5 in
- CD 75 / 1740 x 1040 x 145mm/68.4 x 40.9 x 5.7 in
- CD 86 / 2005 x 1190 x 175mm/78.9 x 46.9 x 6.9 in
Net Weight:
- CD 43 / 9.75 kg/21.5 lbs
- CD 55 / 15.2 kg/33.5 lbs
- CD 65 / 22 kg/48.5 lbs
- CD 75 / 28.5 kg/62.8 lbs
- CD 86 / 38.5 kg/84.9 lbs
Packed Weight:
- CD 43 / 14.5 kg/32 lbs
- CD 55 / 19.2 kg/42.3 lbs
- CD 65 / 27 kg/59.5 lbs
- CD 75 / 39 k /86 lbs
- CD 86 / 53.5 kg / 118 lbs
VESA Mount Point:
- CD 43 / 400 x 400mm/15.7 x 15.7 in
- CD 55 / 400 x 400mm/15.7 x 15.7 in
- CD 65 / 400 x 400mm/15.7 x 15.7 in
- CD 75 / 600 x 400mm/23.6 x 15.7 in
- CD 86 / 800 x 600mm/31.5 x 23.6 in
Regulatory Certification: CE
1.5m (4.92ft) HDMI Cable x1
3m (9.84ft) EU Power Cable x1
3m (9.84ft) UK Power Cable x1
Remote Control x1
Warranty Card x1
Safety Documents x1
Quick start guide x1
Wi-Fi Dongle x1
Wall Bracket x1
