On-Board Computer
OPS

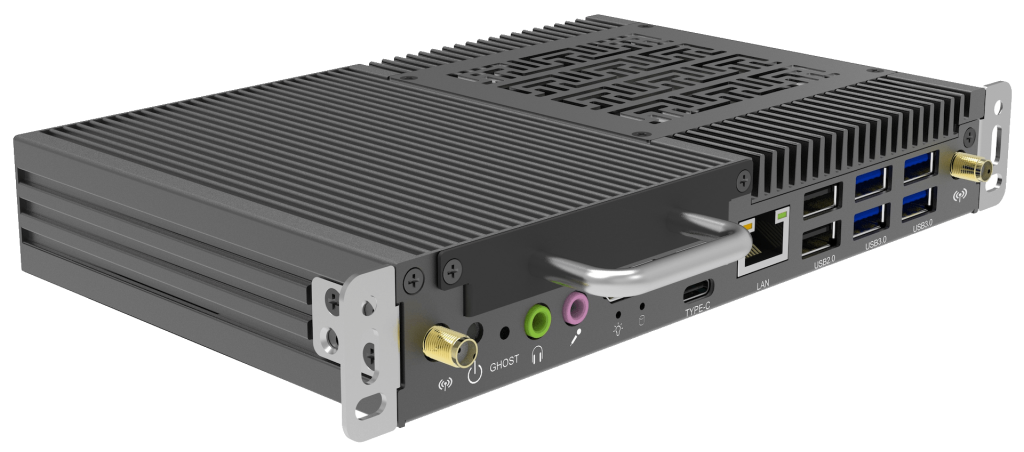

The Innex OPS Computer is a smart, plug-in upgrade for your Innex Meeting Hub. Powered by Intel, it instantly turns your interactive display into a full Windows computer—no external laptop needed.

Plug-and-Play Setup

Just slide the OPS computer into the Innex Meeting Hub’s built-in OPS slot, install your preferred operating system, and you’re ready to go. No extra cables, just seamless integration.

Powered by Intel

Choose from Intel processor i5 or i7 options for fast, reliable computing. Whether you’re multitasking, presenting, or running collaboration apps, the OPS delivers desktop-grade power right inside your Innex display.

Expand Your Connectivity

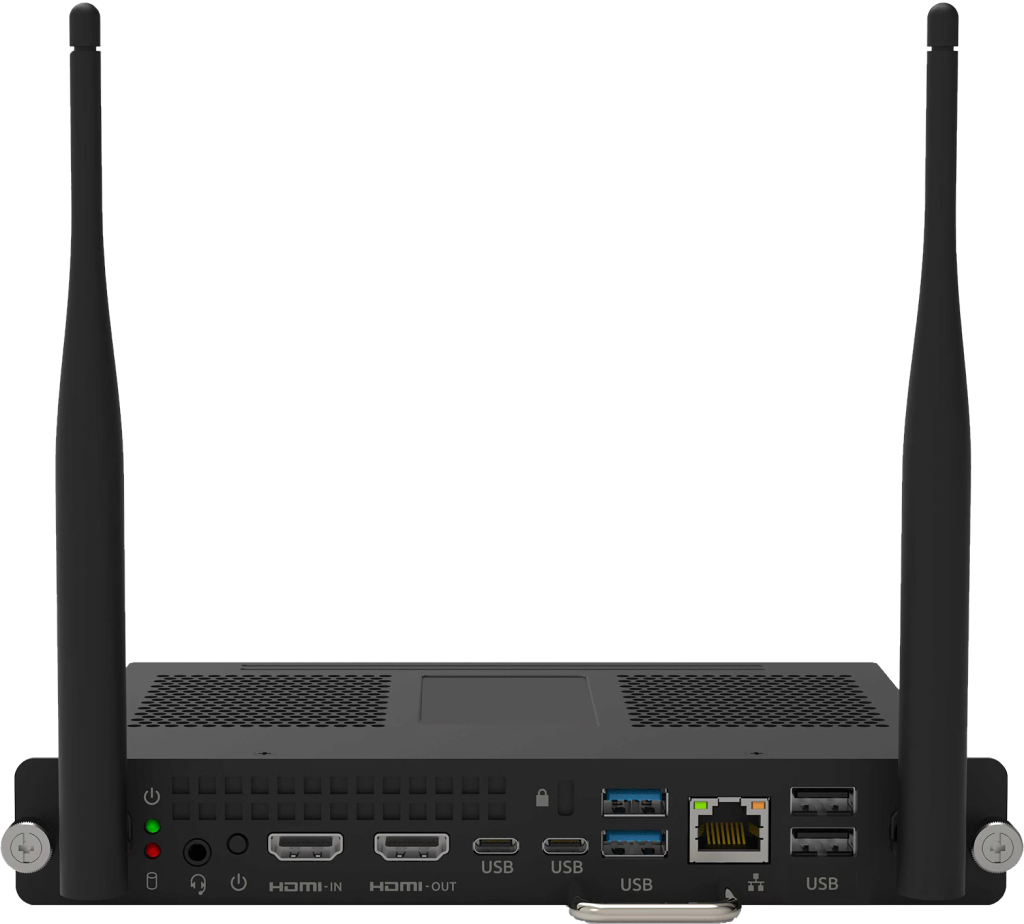

With additional I/O ports on the OPS, you can plug in more of what you need: USB drives, peripherals, and more.

A Smarter Way to Start Every Meeting

Walk into the room and get working right away with a familiar Windows environment built directly into your Innex Meeting Hub. No need to bring a laptop or switch devices, collaboration becomes faster and easier for every team.

SPECIFICATIONS

CPU: Intel Core i7 1260P, 1.7GHz, turbo frequency 4.7GHz, 12 cores / 16 threads

GPU: Intel Iris Xe Graphics

Operating System: Windows 11 Pro/10

RAM: 16G

ROM: SSD 256G

I/O Ports:
HDMI Out x1 (4K@60Hz, Support CEC)
HDMI In x1 (4K@30Hz)
LAN x1 x10/100/1000Mbps adaptive (RJ45)
USB-C 3.0 x2 (ThunderboltTM 4.0, PD 65W)
USB-A 2.0 x2
USB-A 3.0 x2
Power x1 DC 12V-19V
3.5mm Audio Jack x1 (Mic/Spekaer 2-in-1)
WLAN x1 Wi-Fi 6E

Operating & Storage Environment
Operating Temp.: 0 °C ~ 45 °C / 32 °F ~ 113 °F
Storage Temp.: -20 °C ~ 70 °C / -4 °F ~ 158 °F
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5% ~ 95%, non-condensing

CPU: Intel Core i5 1334U, 1.3GHz, turbo frequency 4.6GHz, 10 cores / 12 threads

GPU: Intel Iris Xe Graphics/Intel UHD Graphics

Operating System: Windows 11 Pro/ 10

RAM: 16G

ROM: SSD 256G

I/O Ports:
HDMI Out x1 (HDMI 2.0, Support 3840 x 2160, 4K@60Hz)
DP Out x1 (Support 7680 x 4320, 8K@60Hz)
LAN x1 x10/100/1000Mbps adaptive (RJ45)
Mic In x1
USB-C 3.0 x1
USB-A 3.0 x4
Line Out x1
USB-A 2.0 x2
WLAN x1 Wi-Fi 5/6 + Bluetooth
Power x1 DC 19V/5A

Operating & Storage Environment
Operating Temp.: 0 °C ~ 55 °C / 32 °F ~ 131 °F
Storage Temp. :-20 °C ~ 60 °C / -4 °F ~ 140 °F
Operating Humidity: 10% ~ 90%, non-condensing
Storage Humidity: 5% ~ 95%, non-condensing
